Round Bend U Bolts
- export@rimcooverseas.com
Sizes in Stock
Metric Size : M6 To M120
Sizes Can Be
Manufacture
Up to 8"
Bend Type
Square
Used
Support Pipework
Raw Material
Round Bar
Hardware
High Tensile Nuts and Washers
Advantages
High Performance
Designed To
Provide A Secure and Stable
Grip for Tubing
Most Important Documents to Import U Bolt in Johannesburg, (South Africa)
Table Of Content
U Bolt Specification
Eye Bolt Size
Threads
Grade
ASTM Standard
U Bolt Standard
Manufacturing Technique
Key Features
Testing
Available Packaging
Finishes
U Bolts Application
Certificate & Test Report
Value Added Services
Delivery Time
Rimco Overseas is a long established company formed in mild steel U bolts with over 8 years of experience, a well known U bolt manufacturer in India. We are engaged in offering a highly reliable range of square bend u bolts that offers excellent performance. High strength u bolts is a curved bolt that features threads on both end. Heavy duty u bolts can work as a pipe and tube restraint.
Where Are Mild Steel U Bolts Used?
What Materials & Finishes are Available for Custom Square U Bolts?
| Materials | Finishes |
|---|---|
| Stainless Steel U Bolts | Teflon Blue |
| Mild Steel U Bolt | Plain finish |
| Galvanized U Bolts | Zinc-plated |
| Aluminum U Bolts | Hot dipped galvanized |
| Titanium U Bolt | PTFE coated |
As a leading U bolt manufacturer in India, Rimco Overseas specializes in producing high quality square bend U bolts for a wide range of industries. Large square u bolts available in a range of sizes and finishes to support different environments and loads as per DIN 3570 and BS 3974.
Top 4 Type of Industrial U Bolts
Round Bend U Bolts
Semi-Round Bend U Bolt
Square Bend U Bolts
Forged Top Semi-Round Bend U Bolts
How to Install a High Strength U Bolts?
Stainless Steel U Bolt Temperature Range
Rimco Overseas is the leading U bolt manufacturer in India, supplier and exporter of high strength U bolts in UK ,USA, Austrailia, Poland, Germany, and Ireland. High tensile mild steel U bolts designed to provide a secure and stable grip for tubing, piping and round surfaces.
Recent Export By Rimco Overseas
Galvanized U Bolt Price List
1/2" x 2-1/2" x 4"
$12.30US $8.29 / 1 QTY
1/2" X 3" X 4"
$16.75US $11.59 / 1 QTY
1/2" x 3-5/8" x 6"
$21.53US $18.22 / 1 QTY
3/8" x 3-5/8" x 5-1/4"
$13.90US $11.20/ 1 QTY
5/8" x 2 1/2" x 4"
$26.30US $18.69 / 1 QTY
5/8" x 3"x 6"
$18.25US $13.38 / 1 QTYWeight Wise Price of Mild Steel U Bolt
3/8-16 X 2-1/2" (0.15 lbs)
$6.59US $4.23 / 25 QTY
1/2-13 X 5.18" (0.75 lbs)
$10.59US $6.98 / 25 QTY
3/8-16 x 4-1/2" (0.32 lbs)
$7.58US $5.37 / 25 QTYA Stainless steel U bolts is a bolt in the shape of the U letter with screw threads on both ends. SS U bolts have primarily been used to support pipework. 316 stainless steel square u bolts is produced using alloy steels by cold forming process. Rimco Overseas offers the best quality U bolt manufacturer in India.
U Bolt Size Chart
| Pipe Size | Thread Length | Diameter | Hook |
|---|---|---|---|
| 1/2 | 2 3/8 | 1/4 | 15/16 |
| 3/4 | 2 3/8 | 1/4 | 1 1/8 |
| 1 | 2 3/8 | 1/4 | 1 3/8 |
| 1 1/2 | 2 1/2 | 3/8 | 2 |
| 2 | 2 1/2 | 3/8 | 2 7/16 |
| 2 1/2 | 3 | 1/2 | 2 15/16 |
| 3 | 3 | 1/2 | 3 9/16 |
| 4 | 3 | 1/2 | 4 9/16 |
| 6 | 3 3/4 | 5/8 | 6 3/4 |
| 8 | 3 3/4 | 5/8 | 8 3/4 |
| 10 | 4 | 3/4 | 10 7/8 |
| 12 | 4 1/4 | 7/8 | 12 7/8 |
| 14 | 4 1/4 | 7/8 | 14 1/8 |
| 16 | 4 1/4 | 7/8 | 16 1/8 |
| 18 | 4 3/4 | 1 | 18 1/8 |
| 20 | 4 3/4 | 1 | 20 1/8 |
| 24 | 4 3/4 | 1 | 24 1/8 |
Rimco Overseas is the best leading U bolt manufacturer in India. We provide round U bolts in different standards & sizes. Industrial U bolts are also available in different grades and materials.
Radius U bolts Size Chart
| Diameter | Width | Length |
|---|---|---|
| 5⁄16" | 1-1⁄4" | 2" |
| 3⁄8" | 2-3⁄4" | 3-3⁄4" |
| 1⁄2" | 2-1⁄2" | 6-3⁄4" |
| 9⁄16" | 2-3⁄4" | 7" |
| 5⁄8" | 2-3⁄4" | 8" |
| 3⁄4" | 3-5⁄8" | 15" |
Square U Bolts Size Chart
| Diameter | Length | Width |
|---|---|---|
| 9⁄16 | 10 | 2-1⁄2 |
| 9⁄16 | 14 | 2-1⁄2 |
| 9⁄16 | 7 | 2-1⁄2 |
| 9⁄16 | 8-3⁄4 | 2-1⁄2 |
| 9⁄16 | 11-3⁄8 | 2-9⁄16 |
| 9⁄16 | 12-1⁄2 | 2-9⁄16 |
| 9⁄16 | 15 | 2-9⁄16 |
| 9⁄16 | 10-1⁄2 | 3-1⁄8 |
| 9⁄16 | 12-1⁄2 | 3-1⁄8 |
| 9⁄16 | 15 | 3-1⁄8 |
| 9⁄16 | 18 | 3-1⁄8 |
| 9⁄16 | 9 | 3-1⁄8 |
| 9⁄16 | 10 | 3-1⁄4 |
| 5⁄8 | 12 | 2-9⁄16 |
| 3⁄4 | 13-1⁄2 | 3-1⁄4 |
| 3⁄4 | 15-1⁄2 | 3-1⁄4 |
Galvanized U Bolts Weight Chart
| Diameter X Width | Weight per piece |
|---|---|
| 5/8" X 4-1/8" | 1.50 |
| 3/8" X 2" | T0.40 |
| 3/8" X 2-1/2" | 0.45 |
| 3/8" X 3-1/2" | 0.50 |
| 1/2" X 2" | 0.65 |
| 1/2" X 3" | 0.70 |
| 1/2" X 3-5/8" | 0.80 |
| 1/2" X 4-5/8" | 0.90 |
| 5/8" X 3" | 1.45 |
| 5/8" X 4-5/8" | 1.60 |
Metric U Bolts Weight Chart
| Nomrmal Pipe Size | Weight |
|---|---|
| M15 | 0,11 kg |
| M20 | 0,12 kg |
| M25 | 0,13 kg |
| M32 | 0,14 kg |
| M40 | 0,15 kg |
| M50 | 0,24 kg |
| M65 | 0,27 kg |
| M80 | 0,30 kg |
| M100 | 0,67 kg |
| M125 | 0,74 kg |
| M150 | 0,83 kg |
| M175 | 0,93 kg |
| M200 | 1,66 kg |
| M250 | 1,94 kg |
| M300 | 2,20 kg |
| M350 | 3,55 kg |
| M400 | 3,94 kg |
| M450 | 4,28 kg |
| M500 | 4,70 kg |
| M600 | 5,45 kg |
Custom Made U Bolts Torque Specs
| Grade 5 U Bolts | |
|---|---|
| Size (Diameter x Thread) | Torque |
| 3/8-24 | 30 Ft. lbs. |
| 7/16-20 | 45 Ft. lbs. |
| 1/2-20 | 65 Ft. lbs. |
| 9/16-18 | 90 Ft. lbs. |
| 5/8-18 | 120 Ft. lbs. |
| 3/4-16 | 215 Ft. lbs. |
| 7/8-14 | 345 Ft. lbs. |
| Grade 8 U Bolts | |
|---|---|
| Size (Diameter x Thread) | Torque |
| 5/8-18 | >170 Ft. lbs. |
| 3/4-16 | 300 Ft. lbs. |
| 7/8-14 | 480 Ft. lbs. |
| 1-14 | 740 Ft. lbs. |
| 11/8-14 | 1300 Ft. lbs. |
| 11/4-14 | 1780 Ft. lbs. |

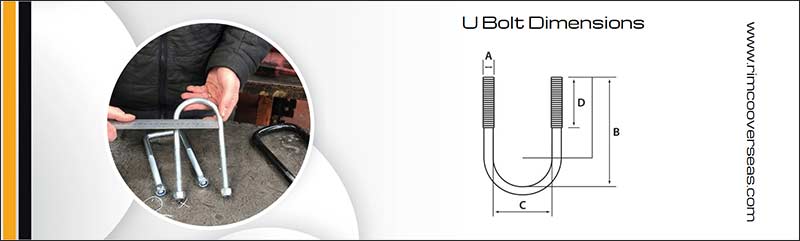

U Bolt Dimensions
| Thread | D | B | C |
|---|---|---|---|
| Diameter | (mm) | (mm) | (mm) |
| M6 | 13 | 32 | 14 |
| M6 | 18 | 40 | 22 |
| M6 | 16 | 40 | 23 |
| M6 | 30 | 48 | 21 |
| M6 | 30 | 65 | 35 |
| M8 | 16 | 42 | 23 |
| M8 | 25 | 52 | 27 |
| M8 | 25 | 53 | 27 |
| M8 | 30 | 64 | 34 |
| M8 | 32 | 68 | 35 |
| M8 | 25 | 68 | 43 |
| M8 | 35 | 80 | 55 |
| M8 | 41 | 81 | 43 |
| M8 | 40 | 100 | 71 |
| M8 | 35 | 106 | 65 |
| M8 | 53 | 110 | 61 |
| M8 | 40 | 144 | 105 |
| M10 | 30 | 52 | 21 |
| M10 | 34 | 71 | 35 |
| M10 | 40 | 75 | 51 |
| M10 | 40 | 80 | 50 |
| M10 | 70 | 138 | 77 |
| M10 | 40 | 140 | 114 |
| M10 | 70 | 185 | 140 |
| M12 | 40 | 107 | 76 |
| M12 | 40 | 165 | 140 |
| M12 | 40 | 170 | 140 |
| M12 | 75 | 175 | 115 |
| M12 | 50 | 200 | 170 |
| M12 | 40 | 315 | 276 |
| M14 | 60 | 270 | 220 |
| M16 | 50 | 143 | 112 |
| M16 | 50 | 260 | 225 |
| M16 | 60 | 270 | 220 |
| M16 | 85 | 495 | 415 |
| M16 | 85 | 535 | 465 |
| M20 | 90 | 645 | 570 |
Square U Bolt Dimensions
| Thread Length (D) |
Size (B x C) |
|---|---|
| 3/8"-16 (A) | |
| 2" | 3" x 4" |
| 3" | 3" x 6" |
| 3" | 3" x 7" |
| 1-1/2" | 4" x 3" |
| 3" | 4" x 5" |
| 3" | 4" x 6" |
U bolt Load Capacity
| Pipe size | Maximum normal load 650º F | Maximum normal load 750º F |
|---|---|---|
| ½” | 580 lbs | 454 lbs |
| ¾ | 580 lbs | 454 lbs |
| 1 | 580 lbs | 454 lbs |
| 1¼ | 1,460 lbs | 1,144 lbs |
| 1½ | 1,460 lbs | 1,144 lbs |
| 2 | 1,460 lbs | 1,144 lbs |
| 2½ | 2,700 lbs | 2,114 lbs |
| 3 | 2,700 lbs | 2,114 lbs |
| 3½ | 2,700 lbs | 2,114 lbs |
Types of U Bolt
Square Bend U Bolts
Custom Made U Bolts
Industrial U Bolts
High Strength U Bolts
Custom Square U Bolts
Teflon Coated U Bolts
Rubber Coated U Bolts
Long Tangent U Bolts
Threaded U Bolt
U Bolts For Boat Trailers
U Bolts For Marine
Heavy Duty U Bolts
Small Square U Bolts
Extra Long U Bolts
Large Square U Bolts
Rectangle U Bolts
Double Bend U Bolt
Exhaust U Bolt
Large Square U Bolts
DIN 3570 U Bolt
BS 3974 U Bolt
